Introduction

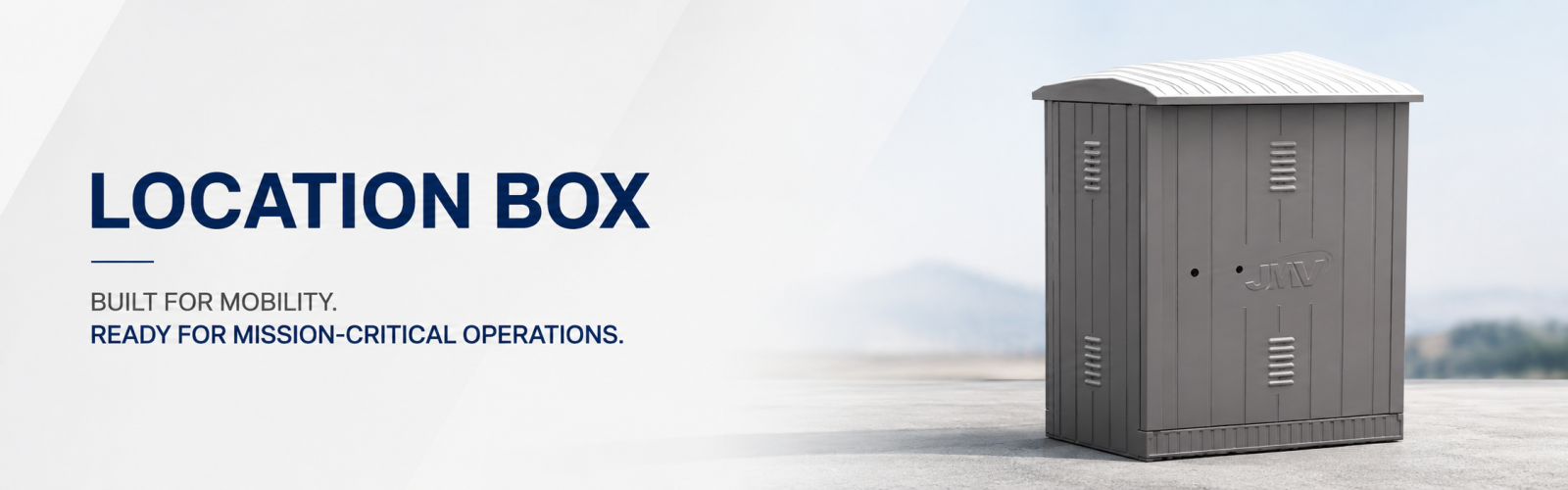

The Location Box is a robust outdoor enclosure manufactured from Fibre Reinforced Polyester (FRP), designed to protect sensitive electrical, telecom, and control equipment in demanding field environments. Unlike conventional metal enclosures, FRP delivers superior corrosion resistance, non-conductivity, and UV stability — with no surface treatment or painting required. Engineered for long service life across industrial, infrastructure, and railway applications, the Location Box combines structural strength with low maintenance and a wide operating temperature range.
Features
- Corrosion resistant - No rust, no surface treatment needed
- UV stable gelcoat - Long-term colour & surface retention
- Non-conductive - Inherently safe for electrical installations
- Thermal stability - Low conductivity, less internal heat swing
- Stainless locking system - Multi-point lock, tamper resistant
- Modular fitout - DIN rail, back-plates, cable management
TECHNICAL SPECIFICATIONS
| Material | Fibre Reinforced Polyester |
| Surface finish | UV-resistant gelcoat, smooth exterior |
| Ingress protection | IP 55 standard |
| Impact resistance | IK 09 / IK 10 (EN 62262) |
| Flammability | UL 94 HB; V-0 grade available |
| Ambient temperature | −40 °C to +80 °C |
APPLICATIONS
- Trackside Signalling - Signal interlocking, point machine, and relay housings along the track
- Traction Power Equipment - Enclosures for lineside power supply and distribution units
- Wayside Communication - GSM-R, TETRA, and fibre optic network equipment housings
- Station Surveillance & Access - Platform CCTV, ticketing, and passenger information system cabinets
- Level Crossing Control - Barrier control, warning lights, and detection system enclosures
- Telecom & Network Infrastructure -Roadside cabinets, base station equipment enclosures
- SCADA & Remote Monitoring - Remote terminal units and data acquisition system housings
