Introduction

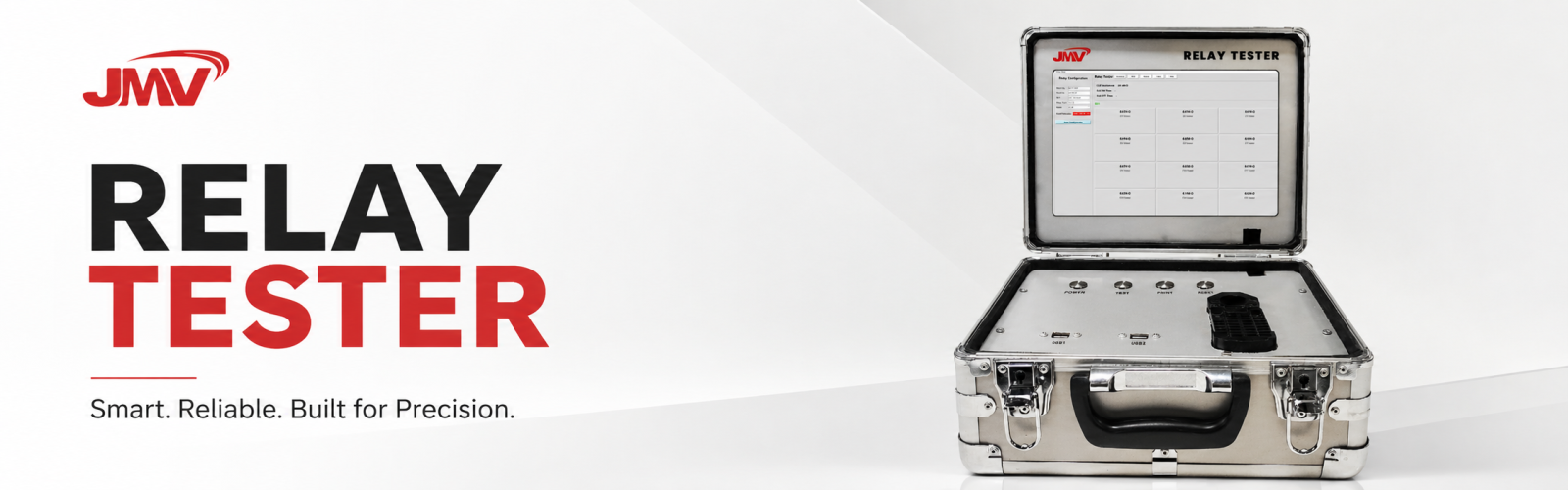

The JMV Relay Tester is designed and customised to provide controlled, auditable testing of customer-specific Q-Style signalling relays in accordance with original BRB design specifications. Most Q-Style relays can be tested easily and quickly using an intuitive touch screen interface with immediate pass/fail results.
Test profiles are stored locally and updated from a secure web server — modifiable by JMV — ensuring relays are always tested to the correct specification. Reports sync to a cloud database via USB or optional Wi-Fi.
Key Features
- User-friendly relay test procedure
- Multiple relay types supported
- 10" capacitive touch screen
- Automatic pin code detection
- USB & optional Wi-Fi / 3G
- Cloud database synchronisation
- Wall mount or portable case
- Contact conditioning at 100 mA
- Automatic test report creation
- Built-in web configuration tool
Technical Specification
| Parameter | Specification |
|---|---|
| Coil Voltage Range | 0 – 24 V DC |
| Coil Current Range | 0 – 500 mA DC |
| Coil Types Supported | Single, Dual, Latch, Current |
| Contact Pairs | Up to 16 (all testable) |
| Display | 10" Colour TFT 800×480, Capacitive Touch |
| Power Input | 100–240 V AC |
| Operating Temperature | −20 to +60 °C |
| Dimensions / Weight | 300 × 250 × 190 mm / <5 kg |
